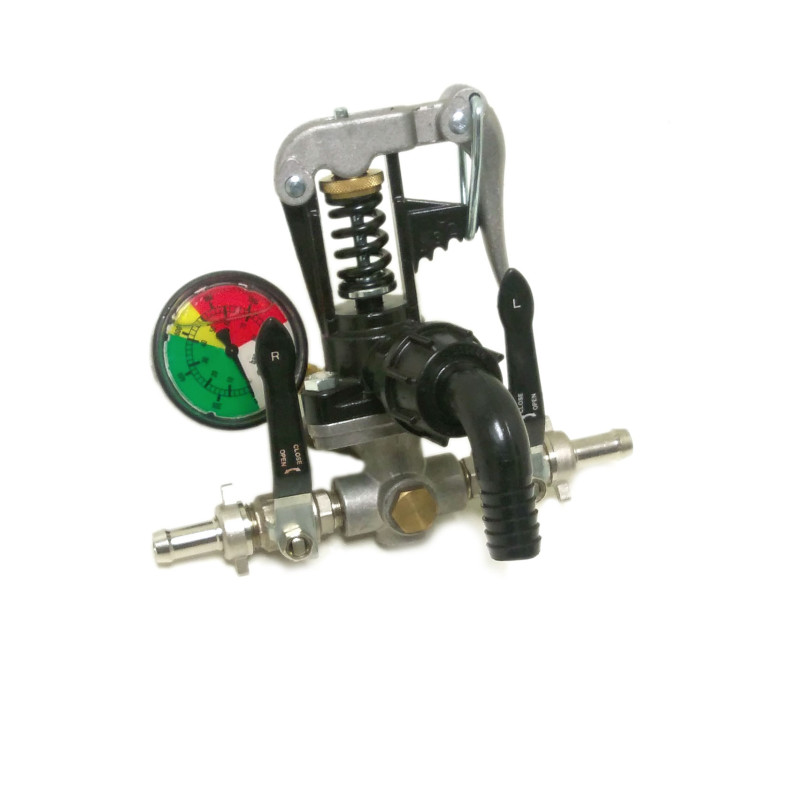

AR GI40 Diaphragm Pump Control Unit
- Brand: A.R. North America
- Product Code: 15116R
- Availability: 4
USD $287.25
Specifications
Type : Control unit with working pressure regulating valve
glycerin bath pressure gauge and colored dial
Maximum Flow : 21.1 GPM (80 LPM)
Maximum Pressure : 580 PSI (40 bar)

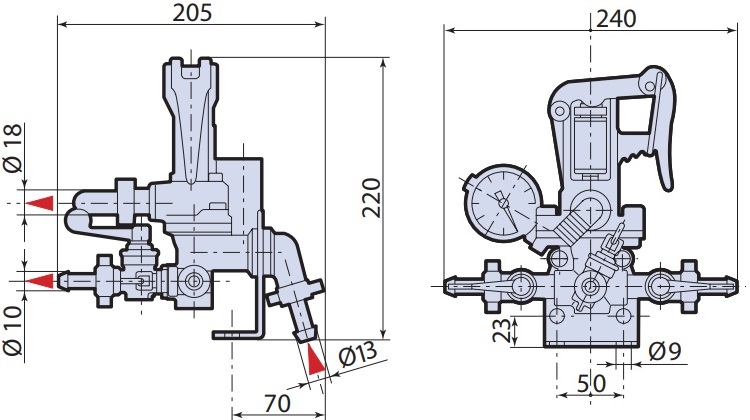

Dimensions
Dimensions : 9.5 x 8.7 x 8.1 in.
Weight : 3.52 lbs (1.6 kg)
The following information is collected from manufacturer's official website. We do our best to keep it up-to-date
