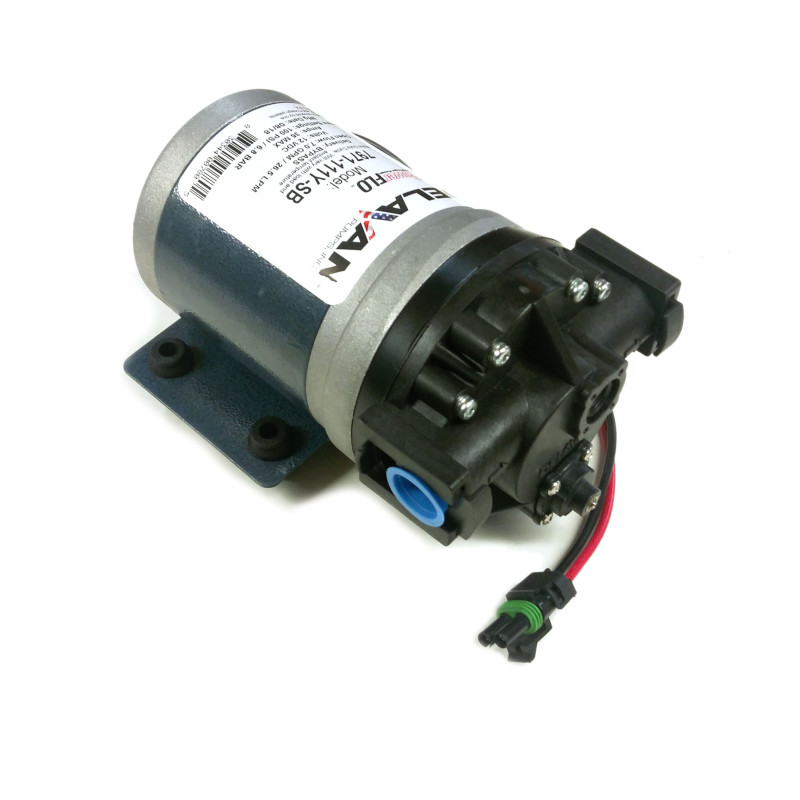

Delavan Powerflo 7971-111Y FB3 Pump 12VDC (bypass)
- Brand: Rogers Sprayers
- Product Code: 15781
- Availability: 3
USD $380.14
Specifications
Type : 12VDC
Leads : 12 AWG, 6” long, Weatherpack Tower Connectors
Liquid Temperature : 140 °F (60 °C) Max.
Priming Capabilities : 14 ft. (4m)
Maximum Pressure : 100 PSI (6.8 bar)
Inlet/Outlet : Quick Attach

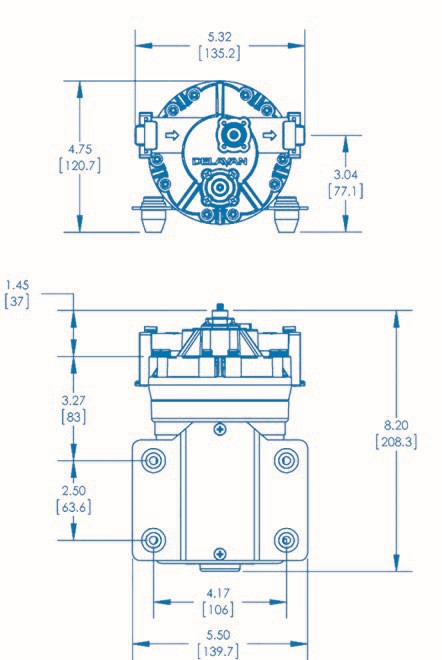

Dimensions
Dimensions : 5.32 x 4.75 x 8.2
Weight : 10 lbs
Heat Rise Chart
** Motor is not equipped
with thermal protection. For user safety, optimal performance
and maximum motor life, the motor surface temperature should not exceed 180°F (82°C)
Parts Breakdown
|
Parts Description |
Rogers Sprayers Part# |
|
|
1 |
7971 Lower Housing |
|
|
2 |
7971 Valve Assembly |
|
|
3 |
7971 Upper Housing |
The information is collected from manufacturer's official website. We do our best to keep it up-to-date
