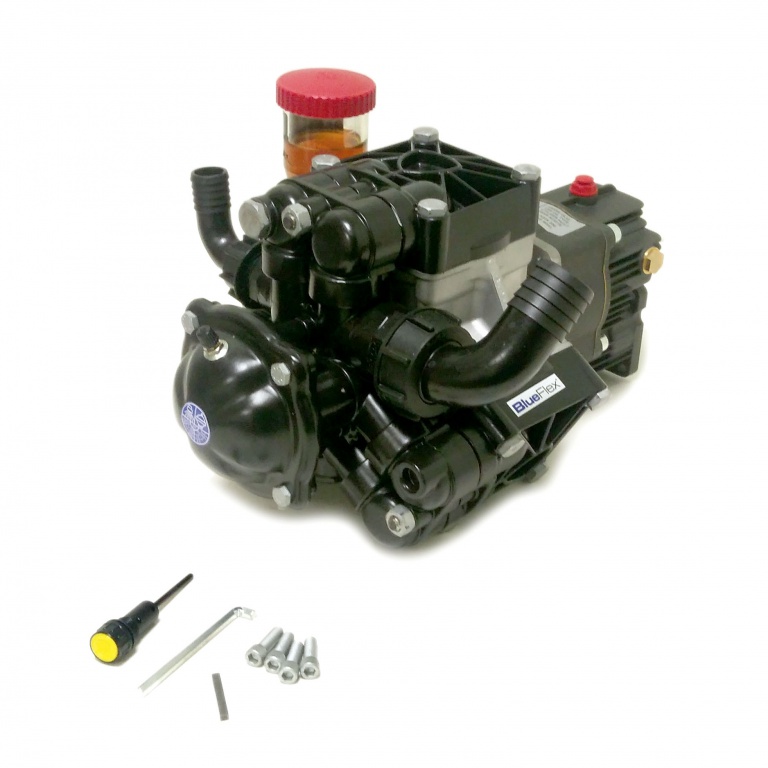

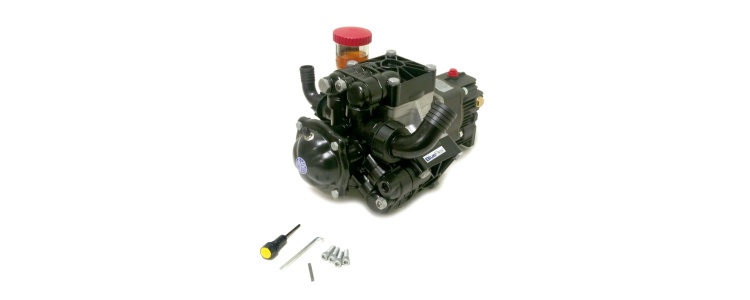

Pump Diaphragm AR135BP-GR3/4

Specifications

Type : Semi-Hydraulic 3 Diaphragm Pump

Comes with an AR1671 Gearbox

Maximum Flow : 33.8 USGPM (128 LPM)

Maximum Pressure : 290 PSI (20 bar)

Power Requirement : 5.5 HP

RPM : 550

Inlet/Outlet : 1-1/2" – 1” Outlet

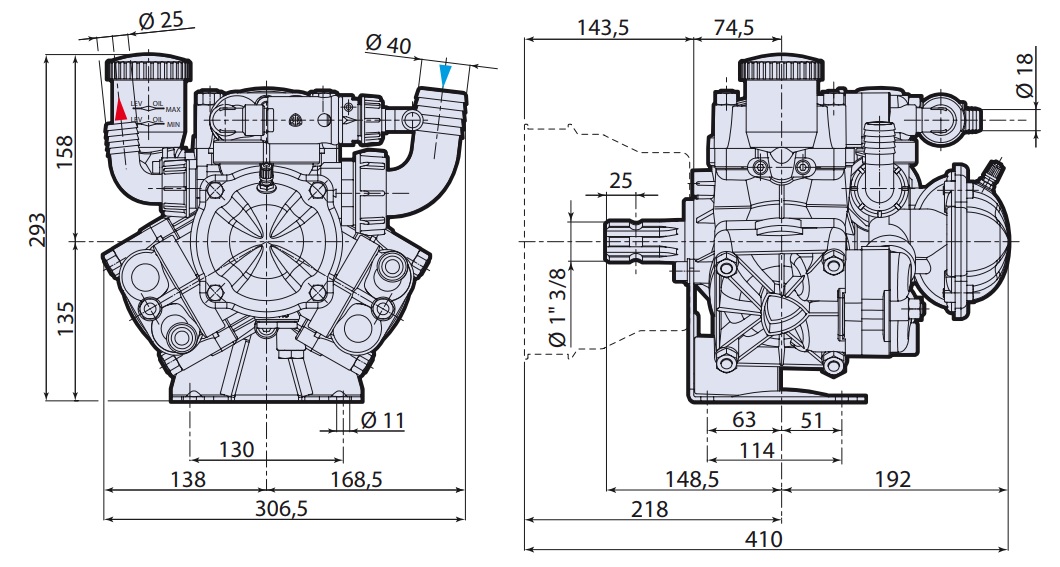

Dimensions

Dimensions : 12 x 12 x 12 in.

Weight : 34.2 lbs (15.5 kg)
