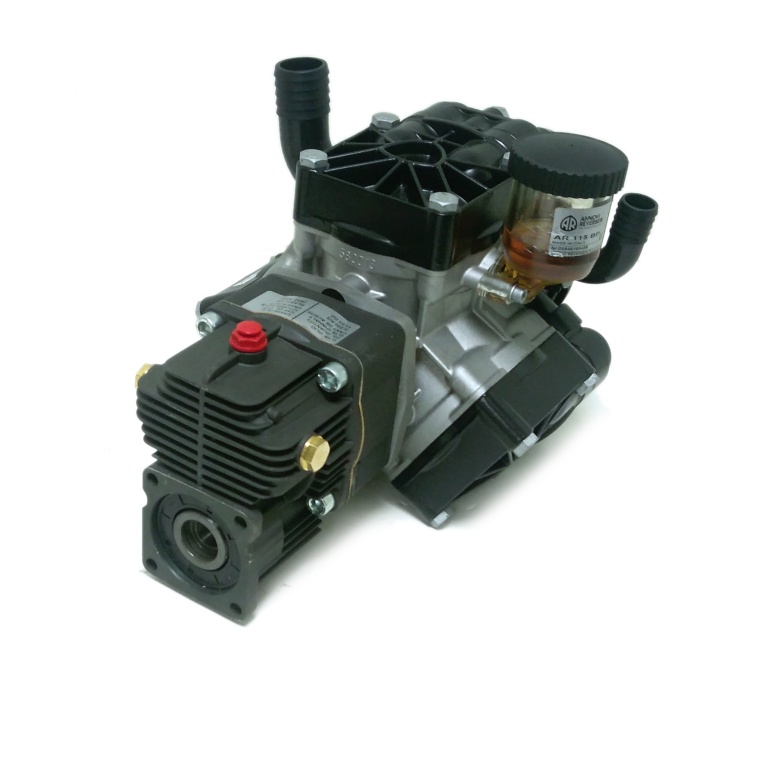

Pump Diaphragm AR115BP-GR3/4

Specifications

Type : Semi-Hydraulic 3 Diaphragm Pump

Comes with an AR1671 Gearbox

Maximum Flow : 28.5 USGPM (107.9 LPM)

Maximum Pressure : 290 PSI (20 bar)

Power Requirement : 5.5 HP

RPM : 550

Inlet/Outlet : 1-1/2” Suction – 1” Outlet

Dimensions

Dimensions : 12 x 12 x 12 in.

Weight : 44 lbs (20 kg)

The information is collected from manufacturer's official website. We do our best to keep it up-to-date
