The following information is collected from manufacturer's official website. We do our best to keep it up-to-date
Specifications
Type : Semi-Hydraulic two Diaphragm Pump
Comes with AR1912 control unit and AR1613 gearbox

Maximum Flow : 6.5 GPM (24.6 LPM)

Maximum Pressure : 362 PSI (25 bar)
Power Requirement : 1.42 HP
RPM : 650
Inlet/Outlet : 20mm Suction - 12mm Outlet

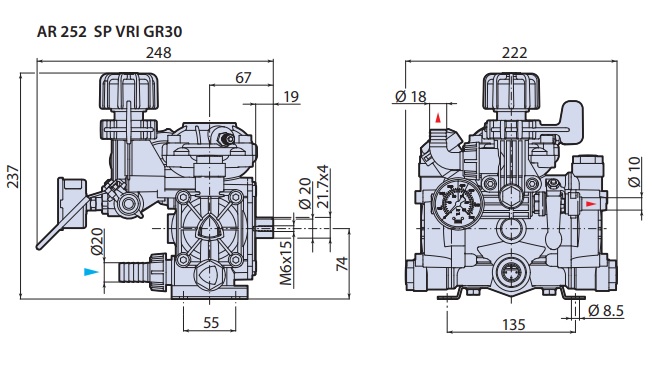

Dimensions

Dimensions : 9.5 x 8.7 x 8.1 in.

Weight : 14 lbs (6.3 kg)



AR252 - Diaphragm Pump w/ Gearbox & Regulator AR252-GR-GCI3/4

  • Brand: Annovi Reverberi
  • Product Code: 05061
  • MPN: AR252-GR-GCI3/4
  • Availability: In Stock
  • USD $772.23
