Specifications

Type : Semi-Hydraulic Two Diaphragm Pump

Comes with GI40 control unit and AR1636 gear reducer

Maximum Flow : 9.6 GPM (36.2 LPM)

Maximum Pressure : 580 PSI (40 bar)

Power Requirement : 2.9 HP

RPM : 550

Inlet/Outlet : 25mm Suction / 13mm Outlet

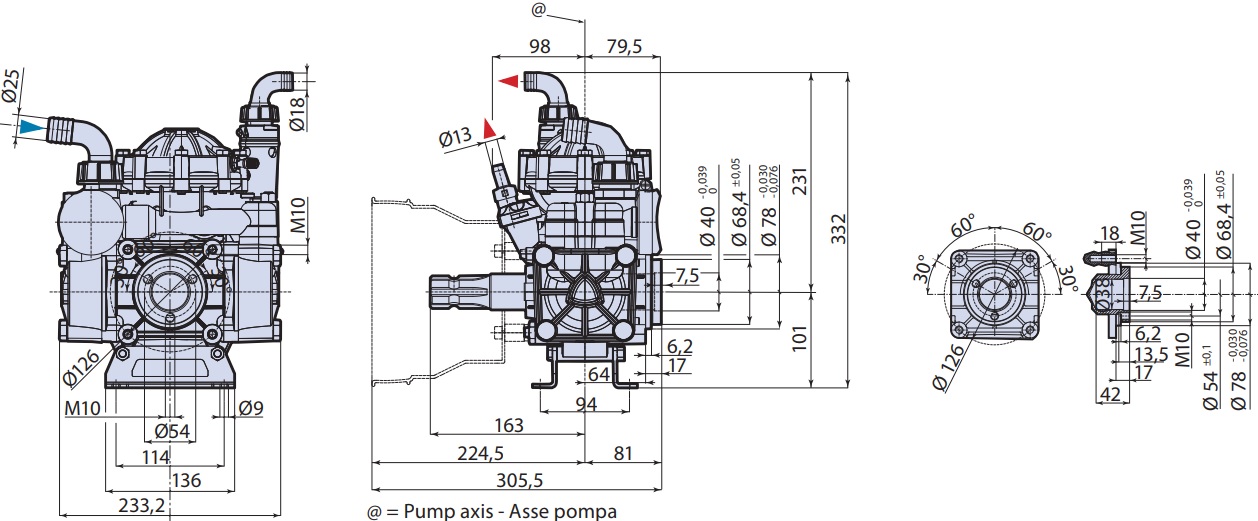

Dimensions

Dimensions : 9.3 x 12.6 x 12 in.

Weight : 33 lbs (15 kg)

The information is collected from manufacturer's official website. We do our best to keep it up-to-date

Latest Model Manual(s)
AR30AR40Manual20231.pdf

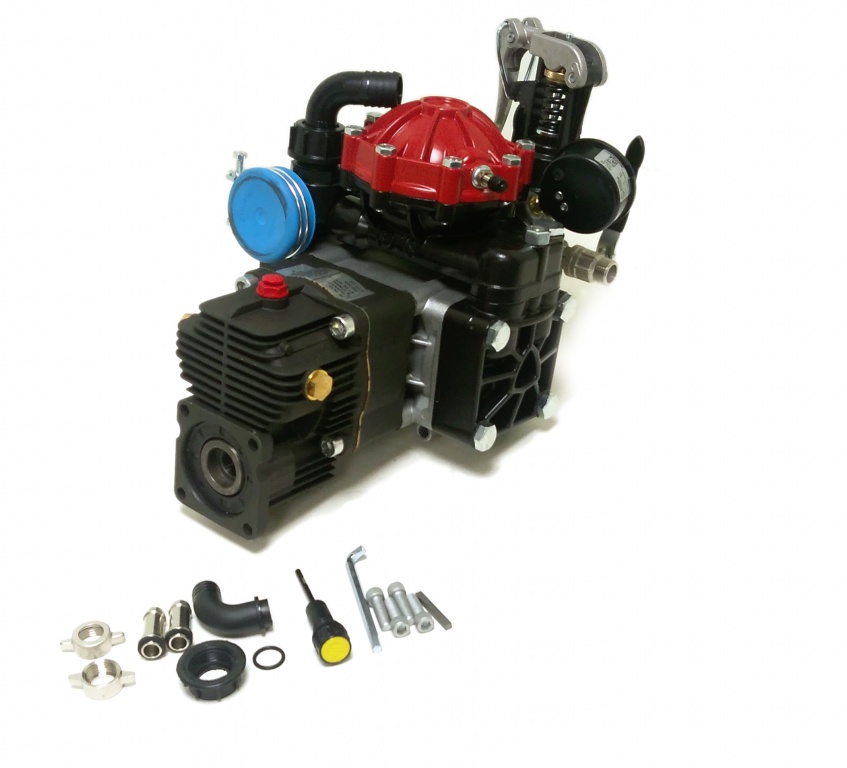

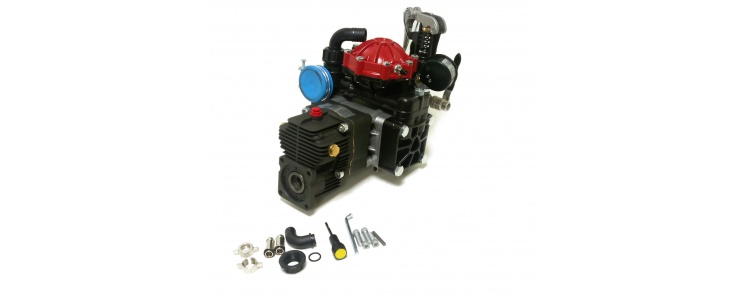

AR30 - Diaphragm Pump w/ Gearbox & Regulator AR30-GR3/4-GCI

Brand: A.R. North America
Product Code: 15570
MPN: AR30-GR3/4-GCI
Availability: 2

USD $1,365.41

Qty
