• Actuator 8, Thomson/Danaher Motion, D12-20A5-08
  • Actuator 8, Thomson/Danaher Motion, D12-20A5-08

Specifications

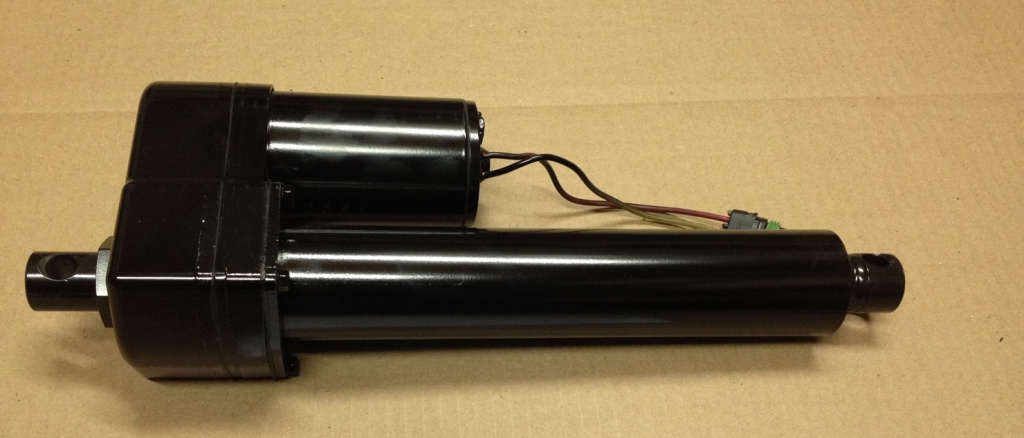

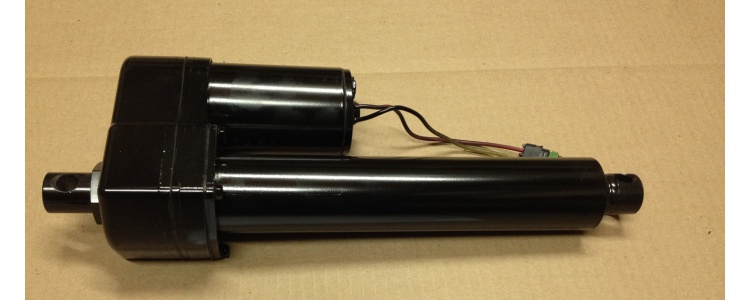

Description: Thomson/Danaher Motion Actuator Electrak 10 D12-20A5-08 (Customized Version)


Gear Reduction: 20:1
Stroke: 8 inch
Voltage: 12 V
Weight:11 lbs (Approximate)

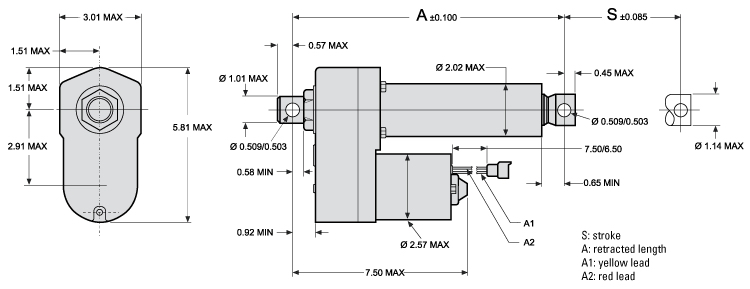

DimensionValue
[A]14.3 in
[S]8 in
FeedbackNo Feedback
Gear Reduction20:1
Limit SwitchesNot Available
Load, Dynamic250 lbf
Load, Max Static1000 lbf
Travel Rate @ Full Load0.55 in/s
Travel Rate @ No Load0.61 in/s
Voltage12 Vdc
Weight11 lb

Actuator 8, Thomson/Danaher Motion, D12-20A5-08

  • Brand: Thomson
  • Product Code: 13590
  • Availability: In Stock
  • USD $590.02
