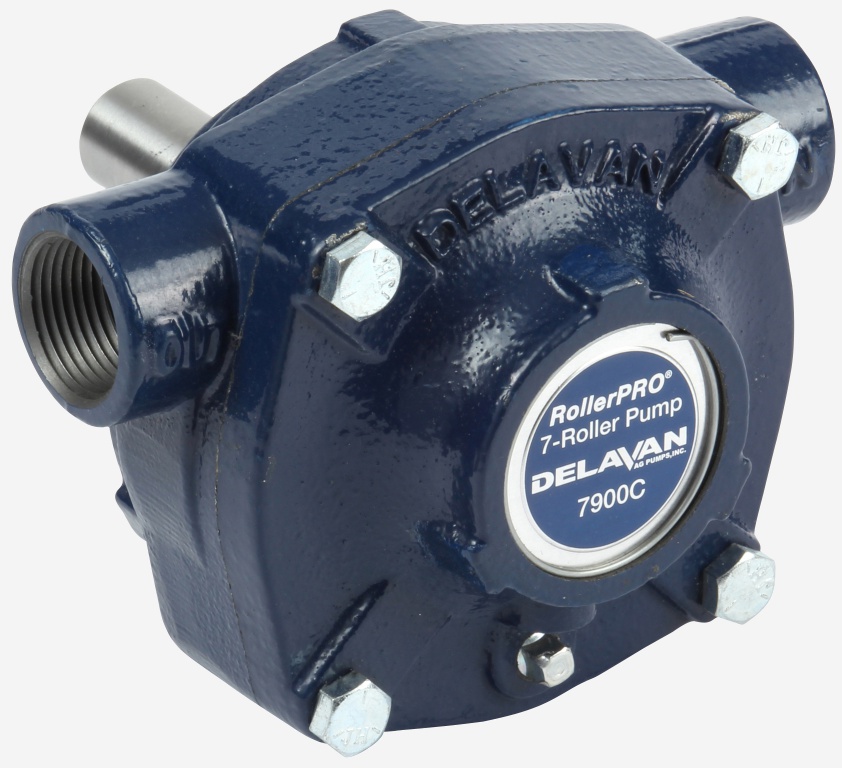

• Delavan 7900 Series Roller Pump  7900C
  • Delavan 7900 Series Roller Pump  7900C
The following information is collected from manufacturer's official website. We do our best to keep it up-to-date

Specifications

Type: 7-Roller design
Max Flow: 22.5 GPM (85.17 LPM)
Max Pressure: 200 PSI (14 bar)
Max Recommended Temperature: 140°F (60° C)
Port Size: 1” FNPT
Mounting: Base Mounted: 3/8 -18 UNC-2B (2 holes)
Shaft Size: 15/16” solid shaft
Shaft Rotation: CCW (standard)
(Shaft rotation is determined when looking at shaft end of pump)



Materials of Construction

Housing: Cast Iron
Rollers: 3/4" Ultra rollers (standard) Polypropylene (optional)
Shaft Seals: Viton cartridge type lip seals
Seal Ring: Viton
Cast Iron: Extra-fine finish 416 SST
Bearings: Permanently-lubricated, heavy-duty sealed bearings

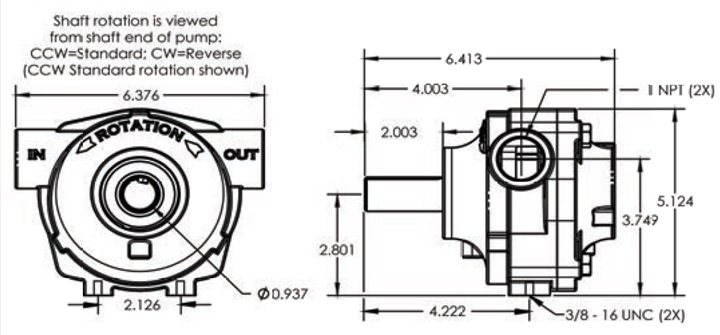

Dimensions


Dimensions : 6.376 x 5.124 x 6.413 in.

Weight : 14 lbs

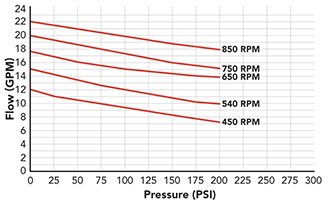

Flow / Pressure Chart




Flow


PSI

540 RPM

650 RPM

850 RPM

0

15.2

17.7

22.5

20

14.5

17.0

21.8

40

13.6

16.2

21.0

100

12.0

15.0

20.0

200

10.0

13.9

18.0



Latest Model Manual(s)
Latest Manual

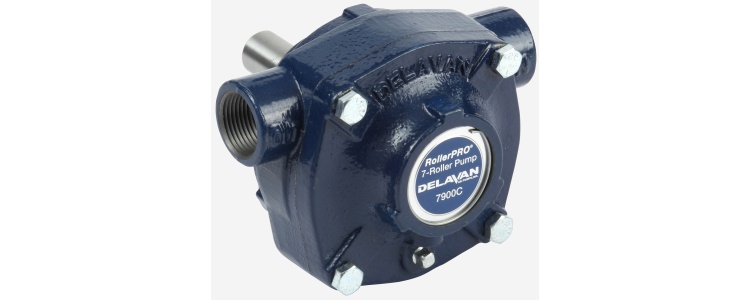

Delavan 7900 Series Roller Pump 7900C

  • Brand: Delavan
  • Product Code: 15092
  • Availability: In Stock
  • USD $311.27
