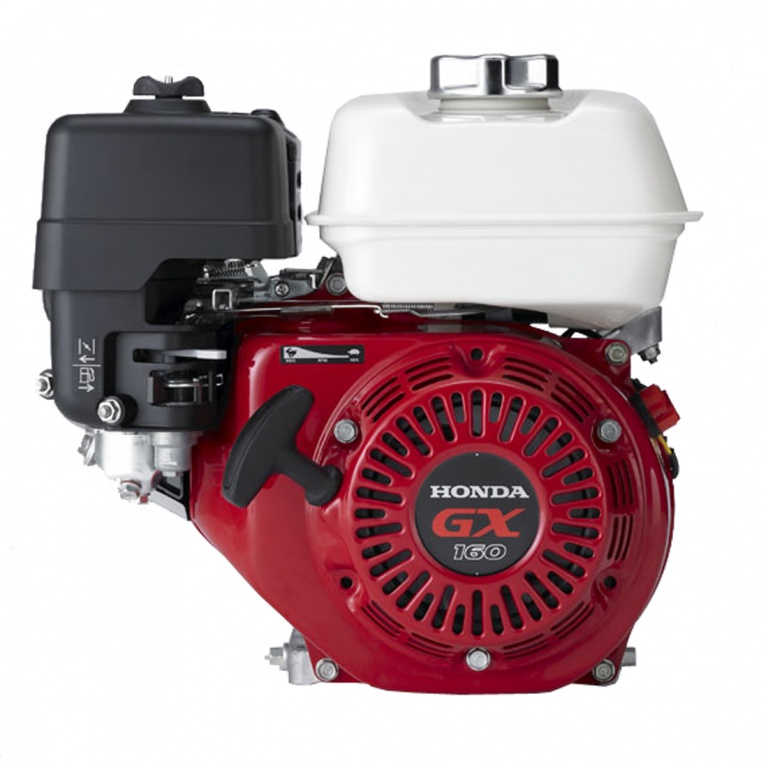

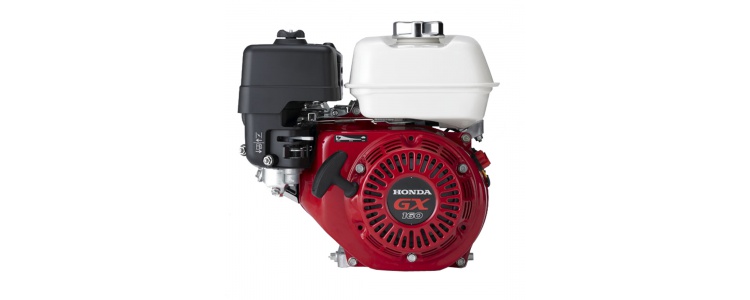

• Engine Honda GX160
  • Engine Honda GX160

Specs:

Engine Type Air-cooled 4-stroke OHV

Bore x Stroke 68 X 45 mm

Displacement 163 cm3

Net Power Output* 4.8 HP (3.6 kW) @ 3,600 rpm

Net Torque 7.6 lb-ft (10.3 Nm) @ 2,500 rpm

PTO Shaft Rotation Counterclockwise (from PTO shaft side)

Compression Ratio 9.0 : 1

Lamp/Charge coil options 25W, 50W / 1A, 3A, 7A

Carburetor Butterfly

Ignition System Transistorized magneto

Starting System Recoil Starter

Lubrication System Splash

Governor System Centrifugal Mechanical

Air cleaner Dual Element

Oil Capacity 0.61 US qt. (0.58 L)

Fuel Tank Capacity 3.3 U.S. qts (3.1 liters)

Fuel Unleaded 86 octane or higher

Dry Weight 33 lbs. (15.1 kg)

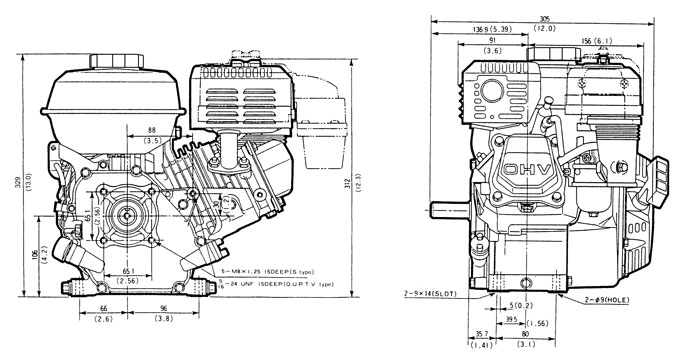

Dimensions

Length (min) 12.2" (312 mm)

Width (min) 14.3" (362 mm)

Height (min) 13.6" (346 mm)


PTO Shaft

H type Reduction type PTO

Engine Honda GX160

  • Brand: Honda
  • Product Code: 15324
  • MPN: GX160
  • Availability: In Stock
  • USD $561.75
