The following information is collected from manufacturer's official website. We do our best to keep it up-to-date


Specifications

Type : Semi-Hydraulic 3 Diaphragm Pump

Maximum Flow : 11.4 GPM

Maximum Pressure : 290 PSI (20 bar)

Power Requirement : 2.1 HP

RPM : 550

Inlet/Outlet : 35mm Suction – 1” Outlet

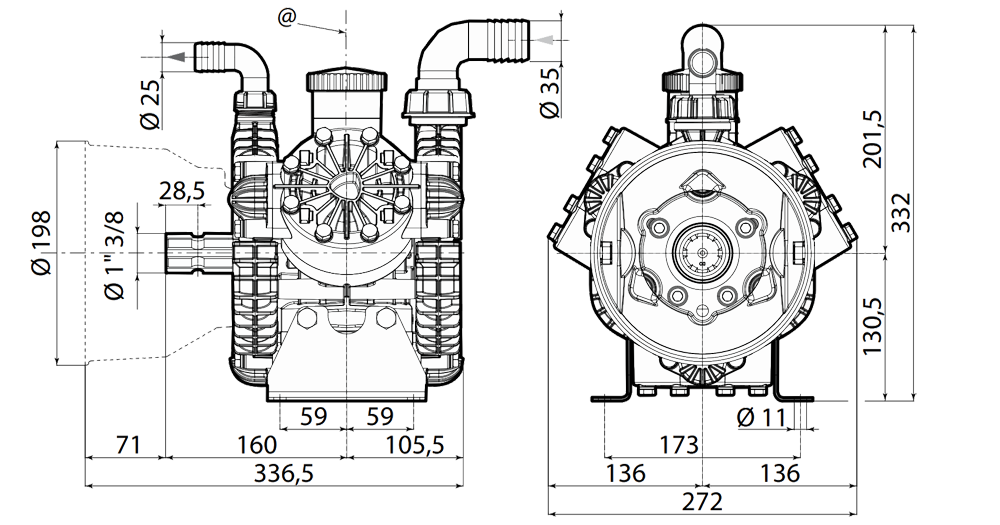

Dimensions

Dimensions : 13.2 x 13 x 10.7 in.

Weight : 24.3 lbs (11 kg)





Related Parts

Repair Kit : BlueFlex Diaphragm kit Part#15826

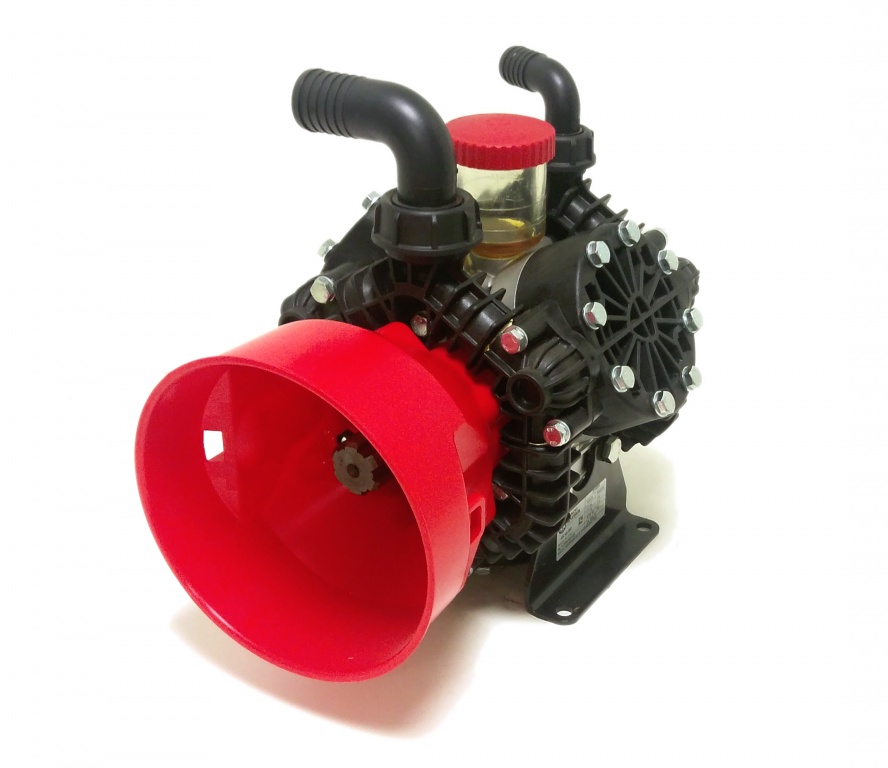

Pump Diaphragm AR45 - 3 Dia

  • Product Code: 15764
  • MPN: AR45BP-C
  • Availability: In Stock
  • USD $788.38
