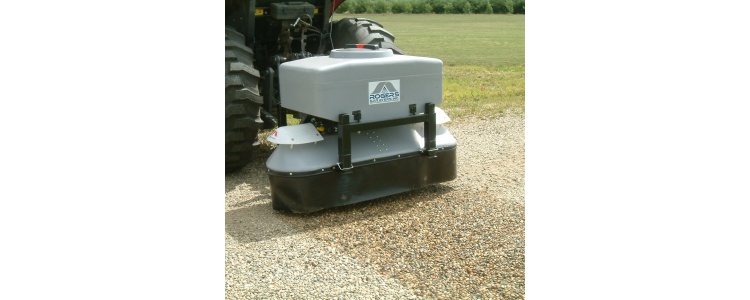

TM3 - Tractor Mount Sprayer 50"

Rogers Sprayers Inc. compact standard use Tractor Mounted Sprayers, the TM3, TM4 and TM6. High strength steel powder coated frame is both lightweight and strong. The legs slide up and down in the frame allowing the unit to be stored on the ground without damaging the curtain, and then raised when mounted on your tractor to spray.

Poly 50 US Gallon tank with a large 12" lid and good sump.

Volume marker indented into the back of the tank.

Includes control box with wires to turn on and off the sprayer from the seat of the tractor.

This sprayer works very well for spraying large lawns in farmyards or making sure that crop rows are clear. Spray pattern can be adjusted for end to end spray coverage.

Frame/Boom Specifications:

·         Aluminum frame under shroud

·         Powder coated steel main frame

·         Adjustable storage legs

·         Rugged Polyethylene Shroud

·         40oz. Dock seal drift-stop skirting

·         No Drip 20psi check valve nozzle bodies

·         Standard flat fan spray tips

·         Industrial grade 1/2” hose

Tank/Pump Specifications:

·         Electric in-cab boom control

·         Manual pressure regulator

·         Liquid filled pressure gauge (0-100psi)

·         50 US gal (180L) tank

·         In-tank agitation

·         Inline strainer/filter

·         Flow indicator sight gauges to confirm nozzle spray

·         12 Volt diaphragm pump

Optional Accessories:

15240   Spray Wand Kit (installed) or 15240K (aftermarket, DIY)

The Wand Kit is a very handy device that allows the operator to spot spray directly from their TM series sprayer. Includes spray wand, 25’ coil hose, separate shut off valve and necessary fittings to tap into existing plumbing. This option can be ordered installed from factory or as a kit.
