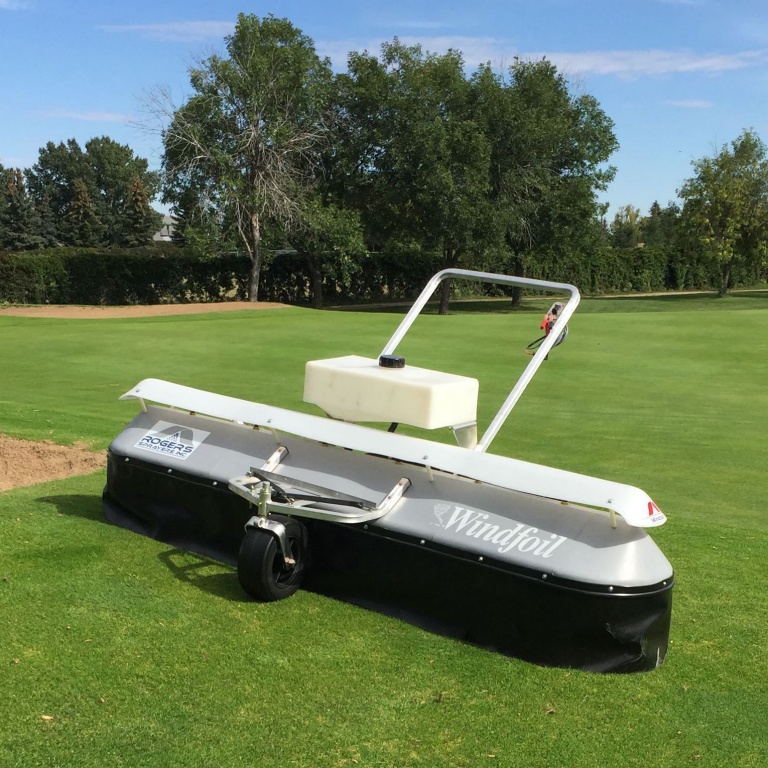

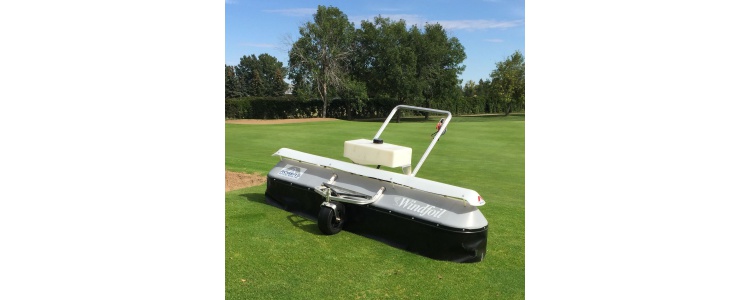

The WE6 is the largest version of Electric Turf Sprayers (shroud measures 86" end to end), designed for the more open areas to reduce spray time.  Application rates range from 16.5GPA covering 13,200 sqft (8001 tip) to 33GPA covering 4,400 sqft (8003 tip) at a walking speed of 3mph using the standard 5 USG tank.  Coverage doubles with the optional 10 USG tank.  The ideal applicator for those larger open areas, tee boxes, greens etc.



Specifications:

· Polyethylene and aluminum construction

· Replaceable non-absorbent drift-stop skirt

· 5 US gal (19L) tank & suction filter

· Handle mounted ON/OFF switch

· 20psi check valve nozzle bodies with 1/4 turn caps

· 8001VS tips with mesh screens

· High output diaphragm pump

· Nozzle flow indicators show if a tip is plugged

· Adjustable height push handle

· Battery holder with straps.

· Battery not included - Recommend a 12V deep cycle gel or sealed battery, but any smaller 12V utility battery will work.



 Optional Accessories:

Part # 14302 -  10US Gal (38L) tank upgrade

This tank is a direct drop-in for the standard 5 US gallon tank that comes standard on all WE series sprayers. It provides twice the spraying time while still retaining the sprayer's agility. This part can be ordered to be installed from factory or is easily installed later.

Part # 13368 -  Speedometer Kit

The Speedometer Kit provides a reading in mph or kph of your forward speed. This aids in the accuracy of applying specific application rates. This option can be ordered installed from factory or later on as a kit.

Part # 13357 -  Spray Wand Kit (installed) or 13357K (aftermarket, DIY)

The Wand Kit is a very handy device that allows the operator to spot spray directly from their WE series sprayer. Includes spray wand, 25’ coil hose, ball valve, handle bar hook, and necessary fittings to tap into existing plumbing. This option can be ordered installed from factory or as a kit

Part # F111 -   Towhitch

This attachment allows you to tow your sprayer behind a small utility vehicle outfitted with a pin hitch. The hitch attaches to a mounting bracket located on the front castor wheel of the sprayer. Tow bar installs and removes in seconds.

*Note: It is not recommended to tow the unit with full tank and battery installed.

Latest Model Manual(s)
Latest Manual





Windfoil Turf Elec 6'

  • USD $2,275.00


Tank Upgrade From 5 to 10 USgal. +USD $75.00
Tank Upgrade From 5 to 10 USgal.
Doubles your capacity, same mount bracket
(+USD $75.00)

Tow Hitch/Walking Booms +USD $105.00
Tow Hitch/Walking Booms

(+USD $105.00)

Speedometer Kit +USD $167.00
Speedometer Kit

(+USD $167.00)

Kit Wand, WE/FE Installed +USD $192.00
Kit Wand, WE/FE Installed
25' Coil hose with wand extends your reach
(+USD $192.00)

Kit Wand, WE/FE Aftermarket (DIY) +USD $149.00
Kit Wand, WE/FE Aftermarket (DIY)
25' Coil hose with wand extends your reach
(+USD $149.00)
