• Delavan Powerflo 7871-111Y FB3 Pump 12VDC (bypass)
  • Delavan Powerflo 7871-111Y FB3 Pump 12VDC (bypass)

The following information is collected from manufacturer's official website. We do our best to keep it up-to-date


Specifications


Type: 12 VDC
Leads: 12 AWG, 6” long, Weatherpack Tower Connectors
Liquid Temperature: 140° F  (60° C) Max
Priming Capabilities: 14 ft. (4m)
Max Pressure: 100 PSI (6.8 bar)
Inlet/Outlet: 1/2 ” FNPT

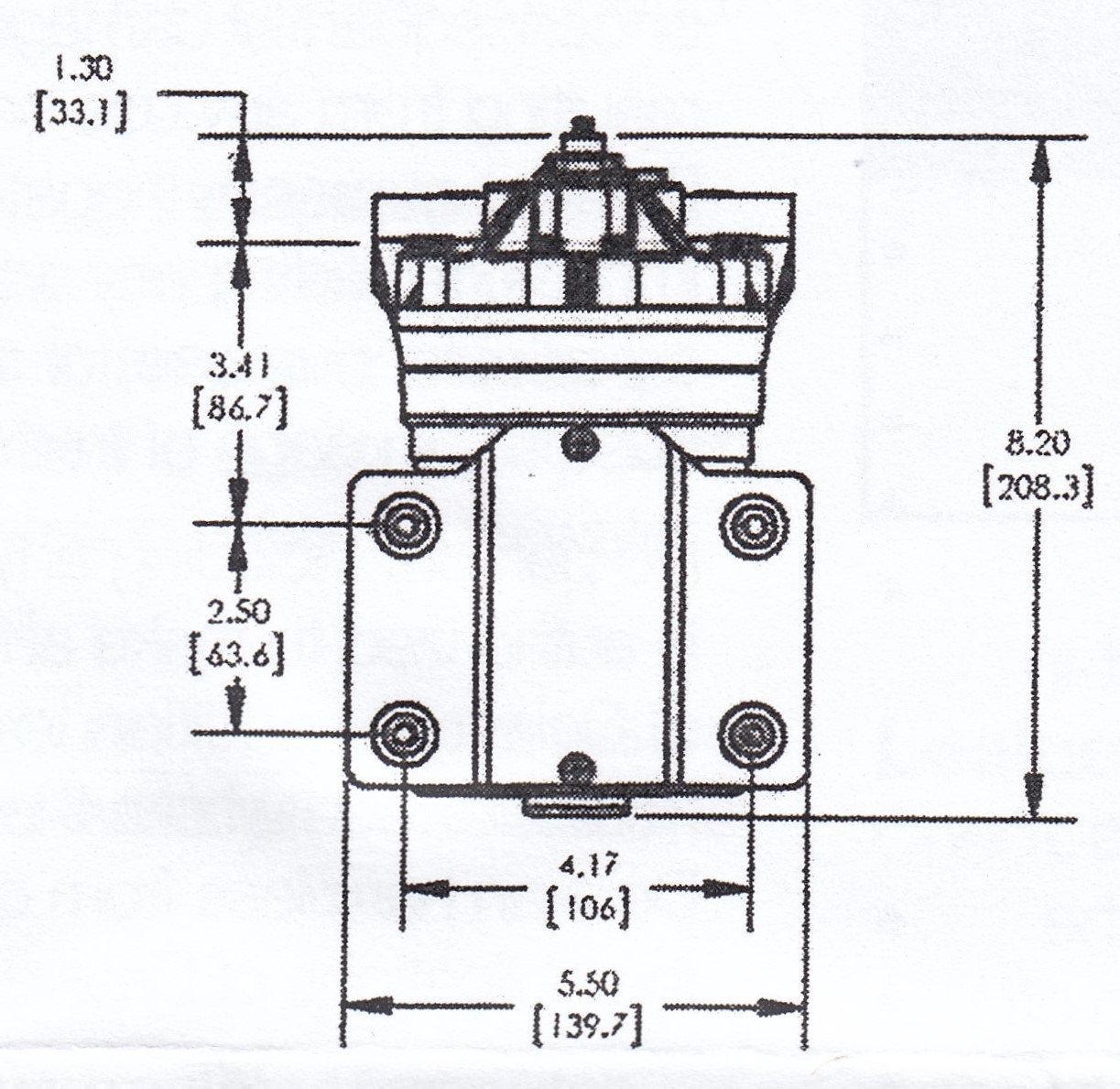

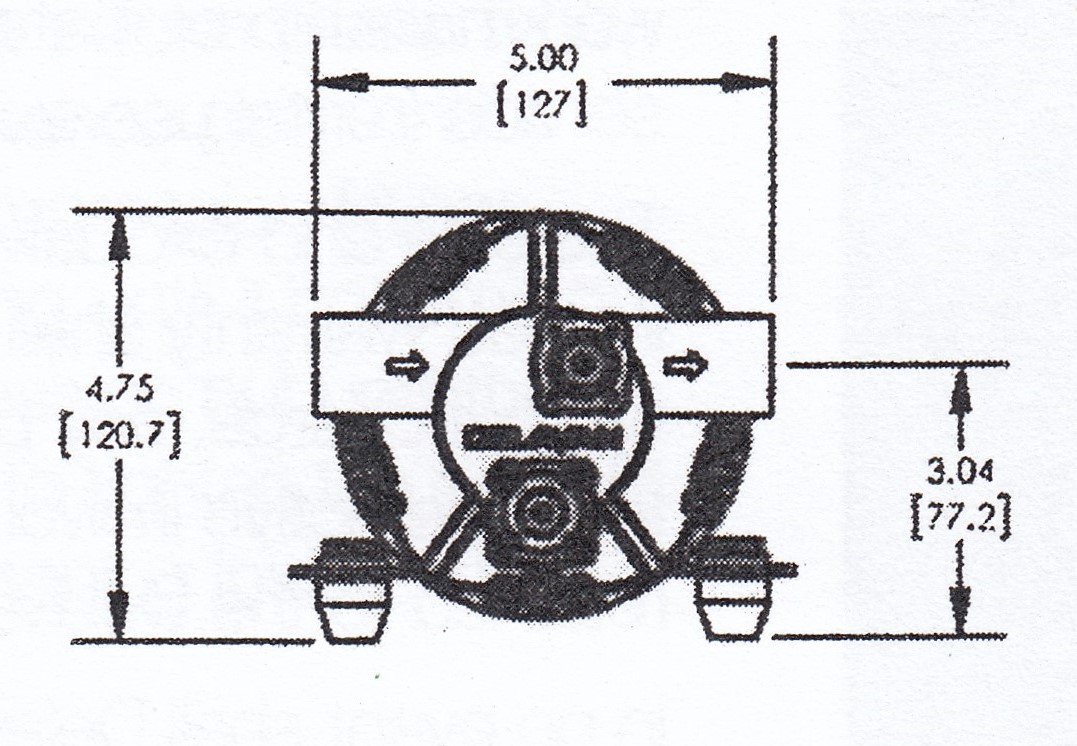

Dimensions


Dimensions: 5 x 4.75 x 8.2 in
Weight: 10 lbs



Heat Rise Chart

                ** Motor is not equipped with thermal protection. For user safety, optimal performance

                and maximum motor life, the motor surface temperature should not exceed 180°F (82°C)



Parts Breakdown



Parts Description

Rogers Sprayers Part#

1

7871 Lower Housing



2

7871 Valve Assembly



3

7871 Upper Housing







Delavan Powerflo 7871-111Y FB3 Pump 12VDC (bypass)

  • Brand: Delavan
  • Product Code: 15838
  • MPN: 7871-111Y-SB
  • Availability: In Stock
  • USD $337.87
