• Delavan 5950-111E PowerFLO Electric Diaphragm Pump (Bypass) with Quickattach
  • Delavan 5950-111E PowerFLO Electric Diaphragm Pump (Bypass) with Quickattach

Specifications

Type : 12VDC

Leads : 14 AWG, 12” long, Weatherpack Tower Connector

Liquid Temperature : 140° F  (60° C) Max.

Priming Capabilities : 14 ft. (4m)

Max Pressure : 60 PSI (4 bar)

Inlet/Outlet : ¾” Quick Attach

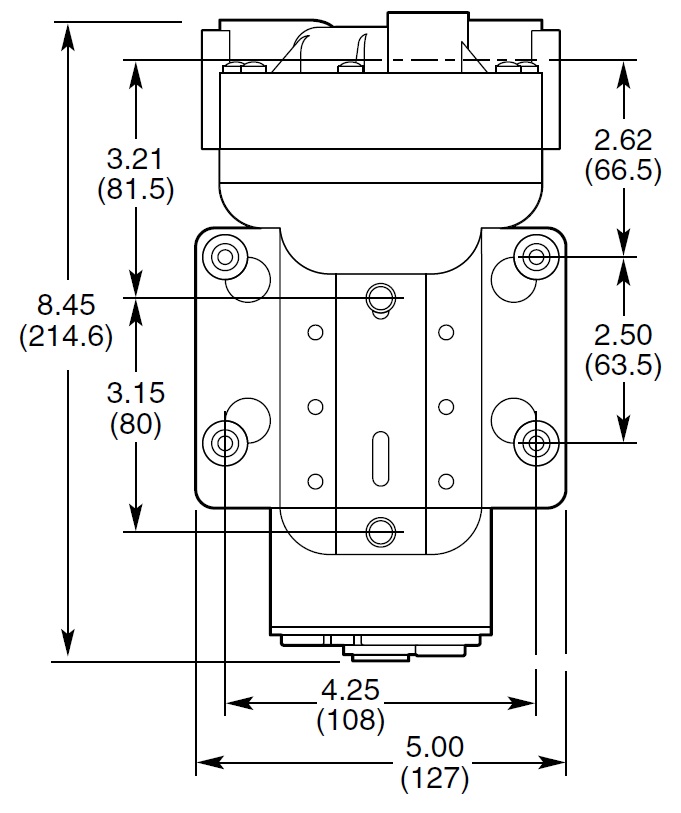

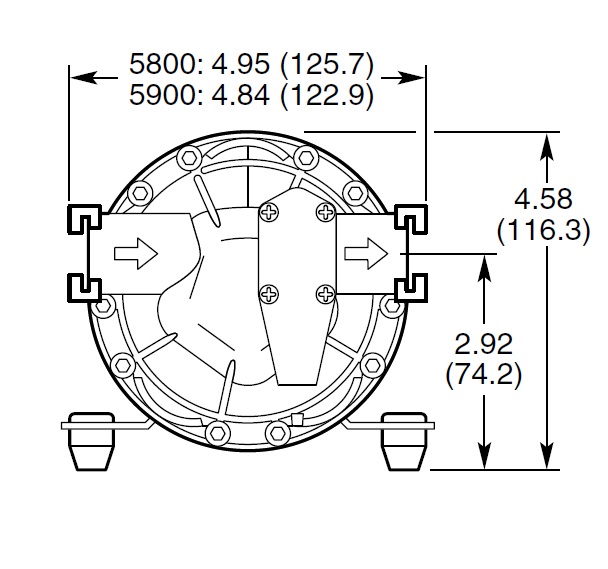

Dimensions

Dimensions : 4.84 x 4.58 x 8.45 in.

Weight : 6.4 lbs

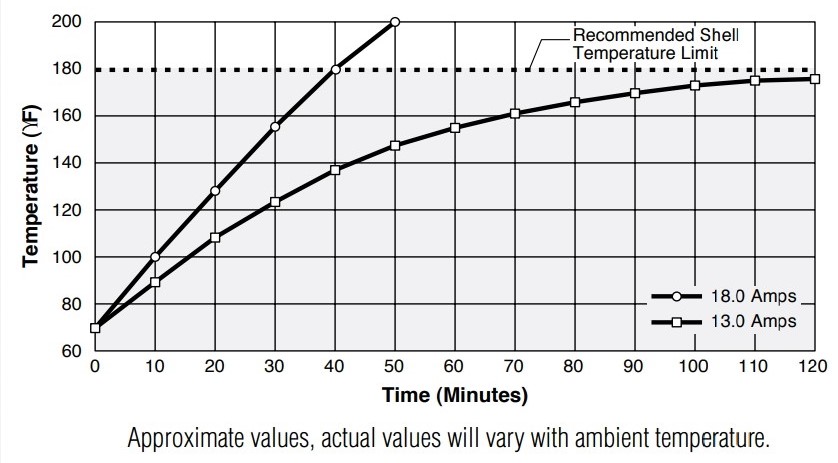

Heat Rise Chart


                ** Motor is not equipped with thermal protection. For user safety, optimal performance

               and maximum motor life, the motor surface temperature should not exceed 180°F (82°C)

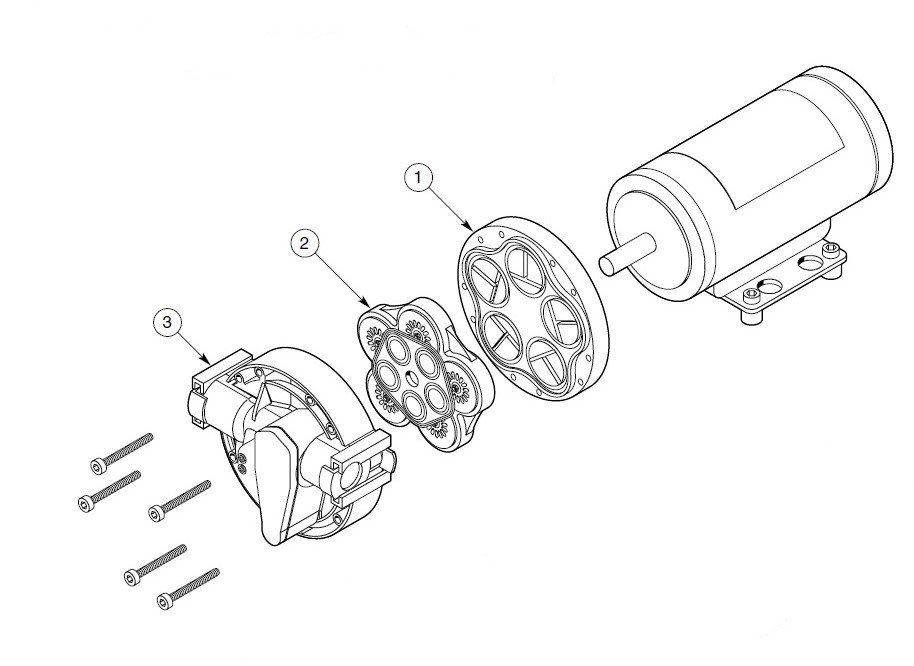

Parts Breakdown




Part Description

Rogers Sprayers Part #

1

5850/5950 Lower Housing

15660

2

5850/5950 Valve Assembly

15664

3

5950 Upper Housing

15789

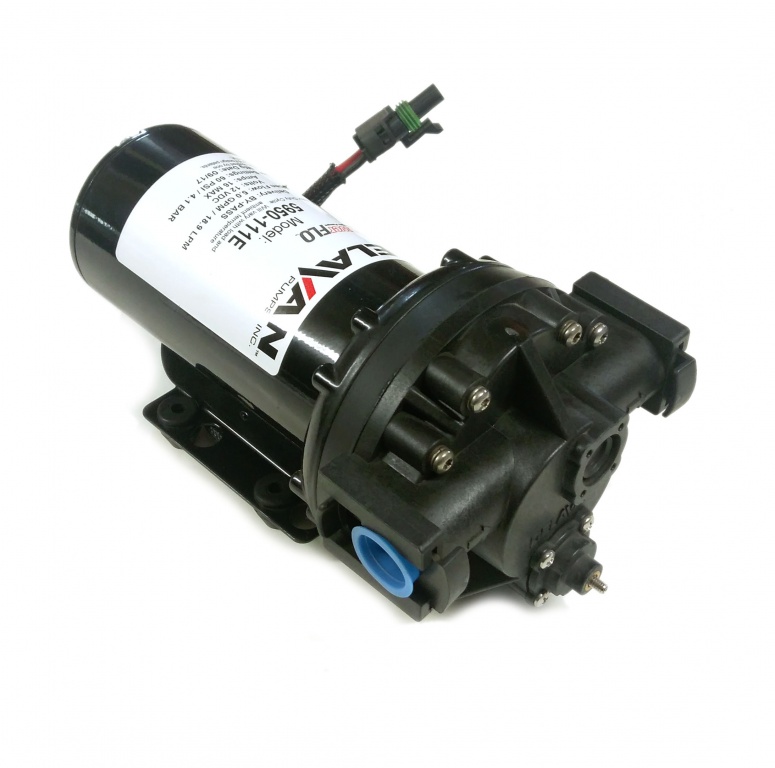

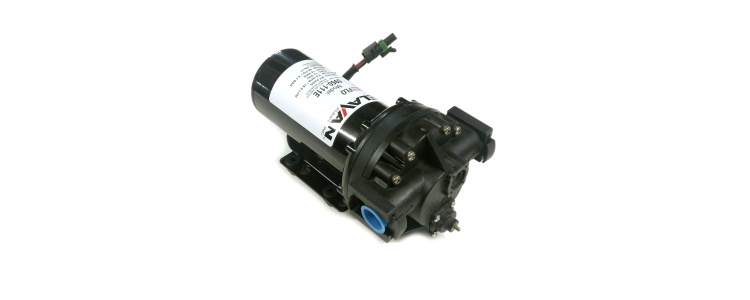

Delavan 5950-111E PowerFLO Electric Diaphragm Pump (Bypass) with Quickattach

  • Brand: Delavan
  • Product Code: 15780
  • MPN: 5950-111E
  • Availability: In Stock
  • Deal of the Week
  • USD $250.81
  • USD $226.00
