• Delavan Powerflo 7971-111Y FB3 Pump 12VDC (bypass)
  • Delavan Powerflo 7971-111Y FB3 Pump 12VDC (bypass)

The following information is collected from manufacturer's official website. We do our best to keep it up-to-date

Specifications


Type: 12 VDC

Leads: 12 AWG, 6” long, Weatherpack Tower Connectors

Liquid Temperature: 140 °F (60 °C) Max

Priming Capabilities: 14 ft. (4m)

Maximum Pressure: 100 PSI (6.8 bar)

Inlet/Outlet: Quick Attach

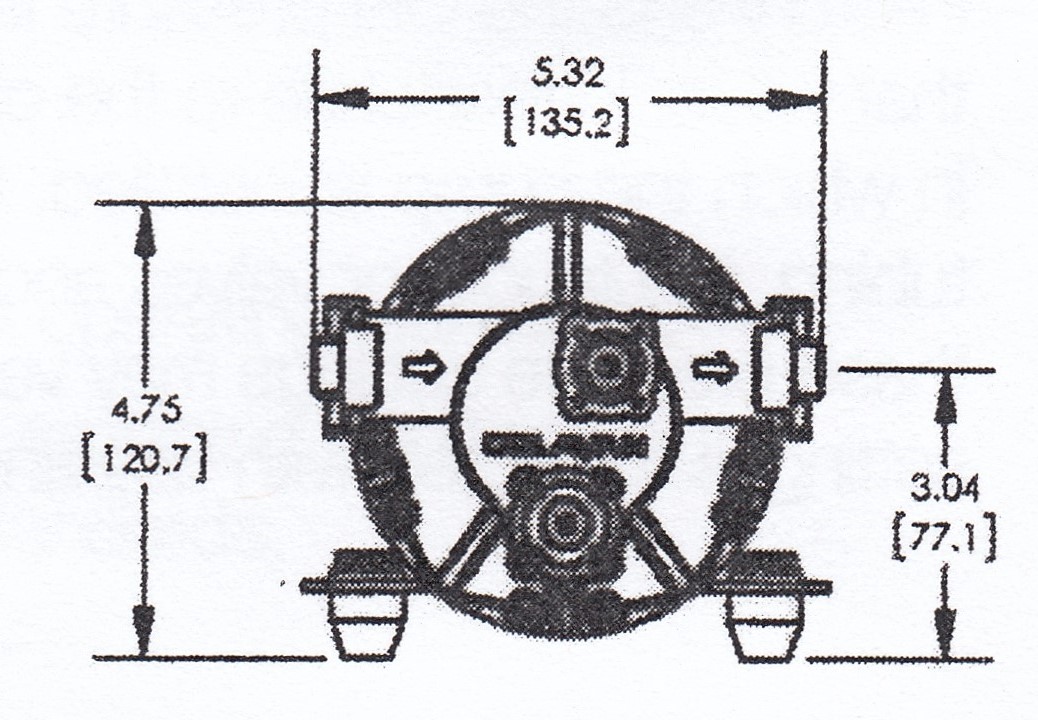

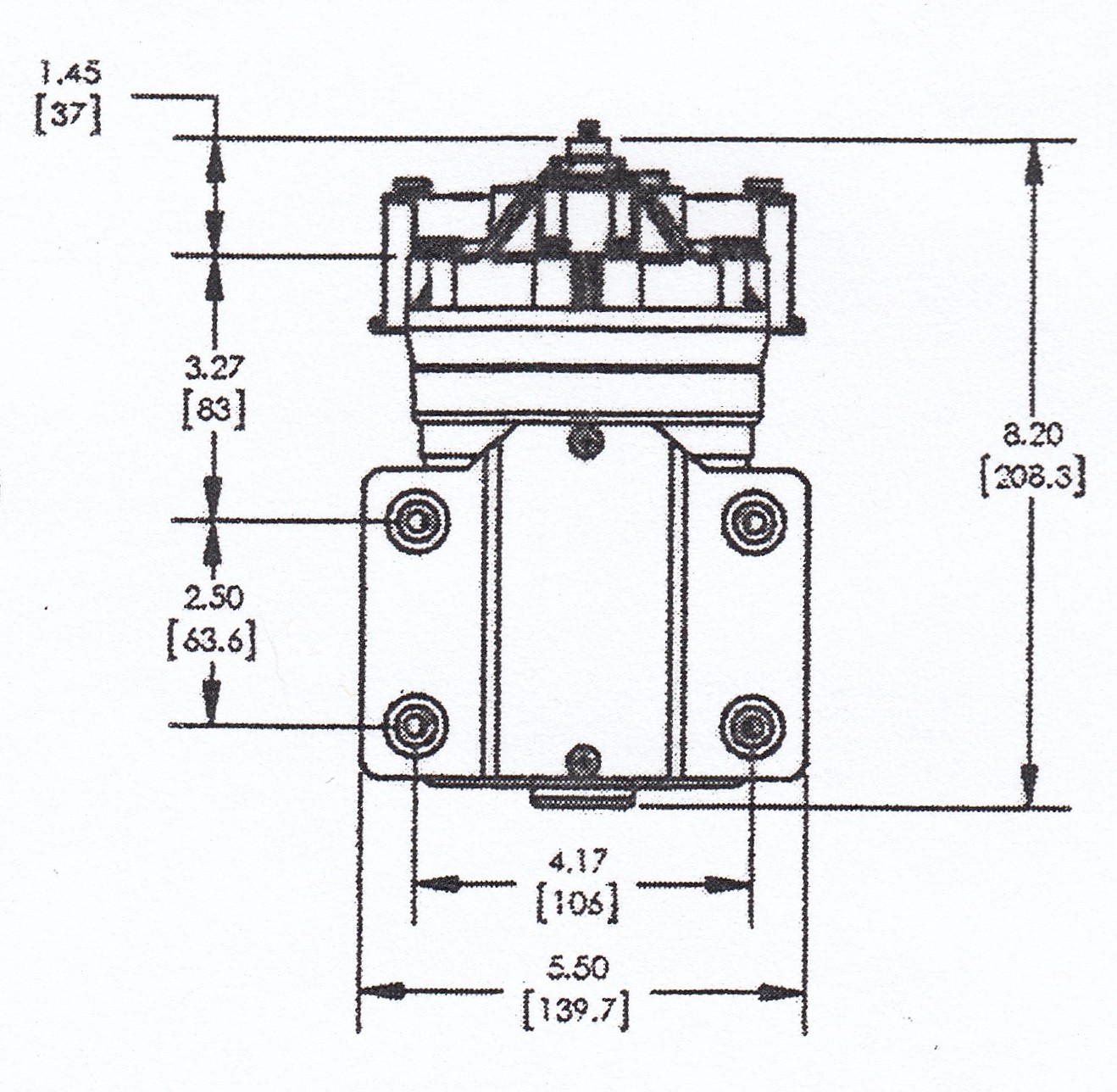

Dimensions


Dimensions: 5.32 x 4.75 x 8.2
Weight: 10 lbs


Heat Rise Chart

            ** Motor is not equipped with thermal protection. For user safety, optimal performance

            and maximum motor life, the motor surface temperature should not exceed 180°F (82°C)


Parts Breakdown


Parts Description

Rogers Sprayers Part#

1

7971 Lower Housing



2

7971 Valve Assembly



3

7971 Upper Housing

15789

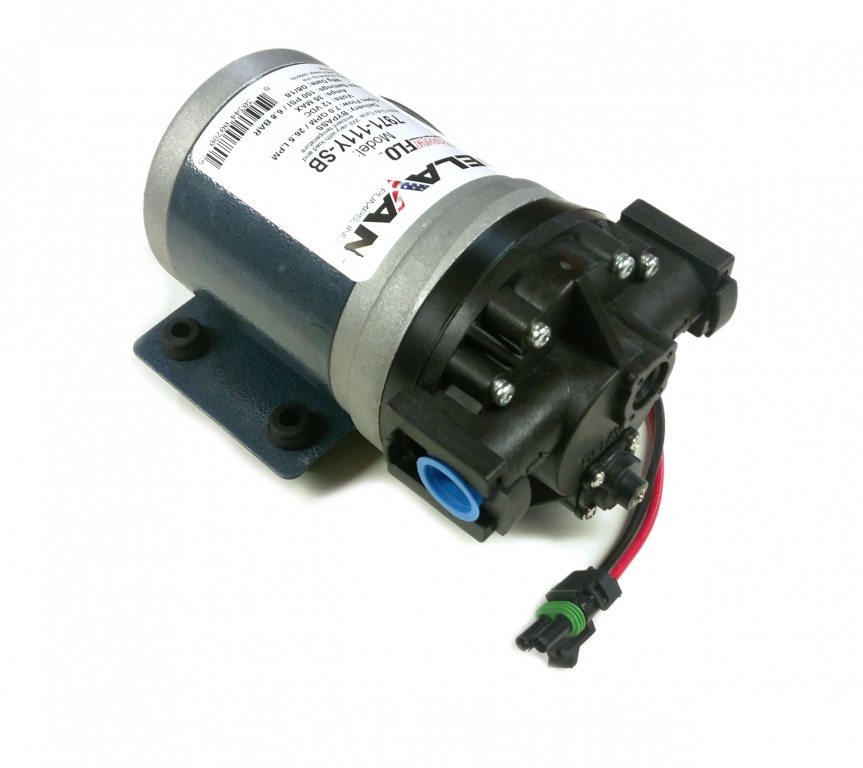

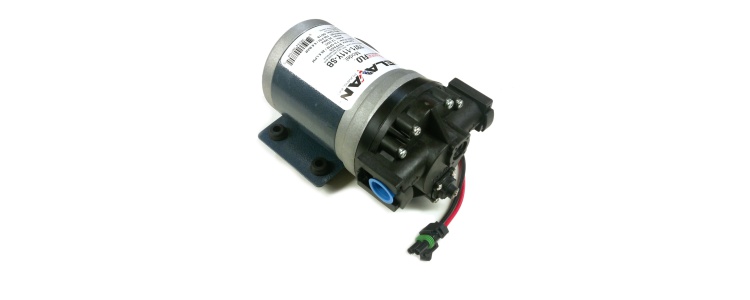

Delavan Powerflo 7971-111Y FB3 Pump 12VDC (bypass)

  • Brand: Delavan
  • Product Code: 15781
  • MPN: 7971-111Y-SB
  • Availability: In Stock
  • USD $366.94
