The folowing information is collected from manufacturer's official website. We do our best to keep it up-to-date


Specifications

Type : 12VDC

Leads : 14 AWG, 12” long, Weatherpack Tower Connector

Liquid Temperature : 140° F  (60° C) Max.

Priming Capabilities : 14 ft. (4m)

Max Pressure : 60 PSI (4 bar)

Inlet/Outlet : ½” FNPT

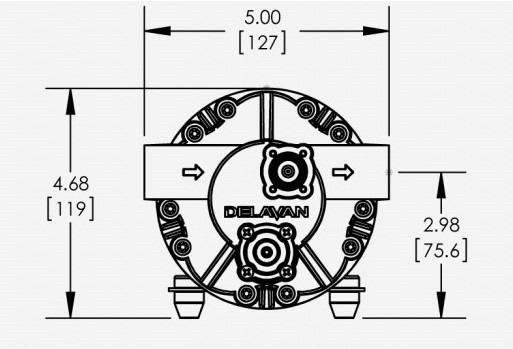

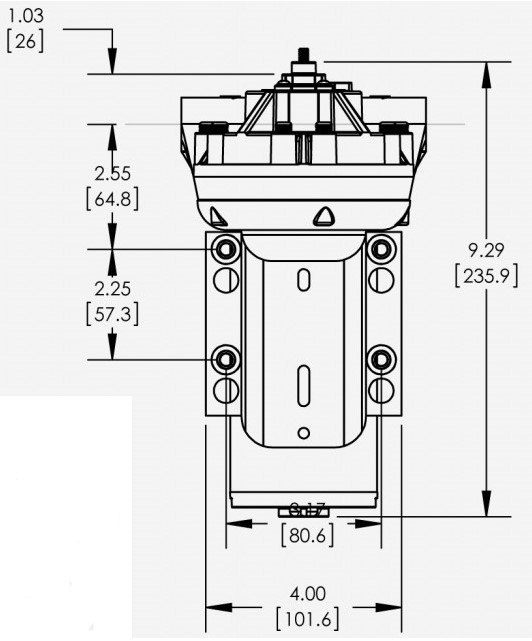

Dimensions

Dimensions : 4.68 x 5 x 9.29 in.

Weight : 7.0 lbs






Heat Rise Chart

                ** Motor is not equipped with thermal protection. For user safety, optimal performance

                and maximum motor life, the motor surface temperature should not exceed 180°F (82°C)


Flow Chart


PSI

GPM

AMPS

0

5.80

5.10

10

5.00

6.00

20

4.50

9.00

30

4.10

7.20

40

3.80

13.00

50

3.30

14.50

60

3.00

16.30




Parts Breakdown




Part Description

Rogers Sprayers Part#

1

5850 Lower Housing

15660

2

5850 Valve Assembly

15664

3

5850 Upper Housing

15389
