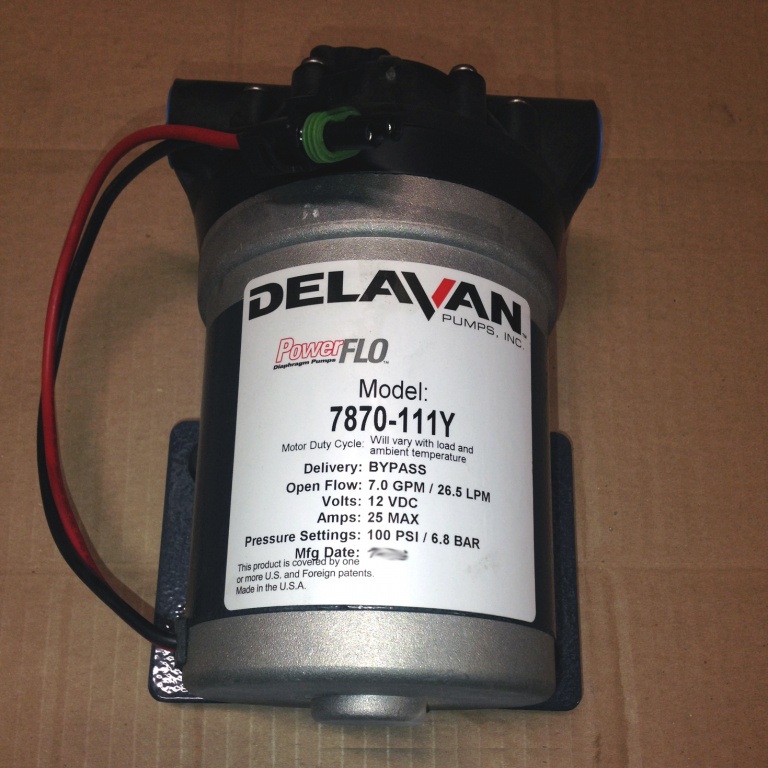

• Delavan Pumps 7870-111Y PowerFLO Electric Diaphragm Pump (Bypass) with Weatherproof Electric Connector
  • Delavan Pumps 7870-111Y PowerFLO Electric Diaphragm Pump (Bypass) with Weatherproof Electric Connector
  • Delavan Pumps 7870-111Y PowerFLO Electric Diaphragm Pump (Bypass) with Weatherproof Electric Connector
Replaced by 15838
The following information is collected from manufacturer's official website. We do our best to keep it up-to-date

Specifications

Motor

Type: 12 VDC permanent magnet, totally enclosed, non-ventilated

Leads: 12 AWG, 12” long

Duty Cycle: See Heat Rise graph

Temperature Limits: Temperature Limits: Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 180°F (82°C).

Certifications: CE Approval


Pump

Type: 5 chamber positive displacement diaphragm pump, self priming, capable of being run dry, demand or bypass mode

Liquid Temperature: 140°F (60°C) Max.

Priming Capabilities: 14 feet (4 m)

Max Pressure: 100 PSI (7 bar)

Inlet/Outlet Ports: 1/2" FNPT

Materials of Construction:

       Housing: Polypropylene
       Diaphragm: Santoprene
       Valves: Viton
       Fasteners: Stainless steel

Weight

Approximately 8 lbs (3.6kg)








Delavan Pumps 7870-111Y PowerFLO Electric Diaphragm Pump (Bypass) with Weatherproof Electric Connector

  • Brand: Delavan
  • Product Code: 14499
  • MPN: 7870-111Y
  • Availability: Out Of Stock
  • USD $315.21
