Specifications

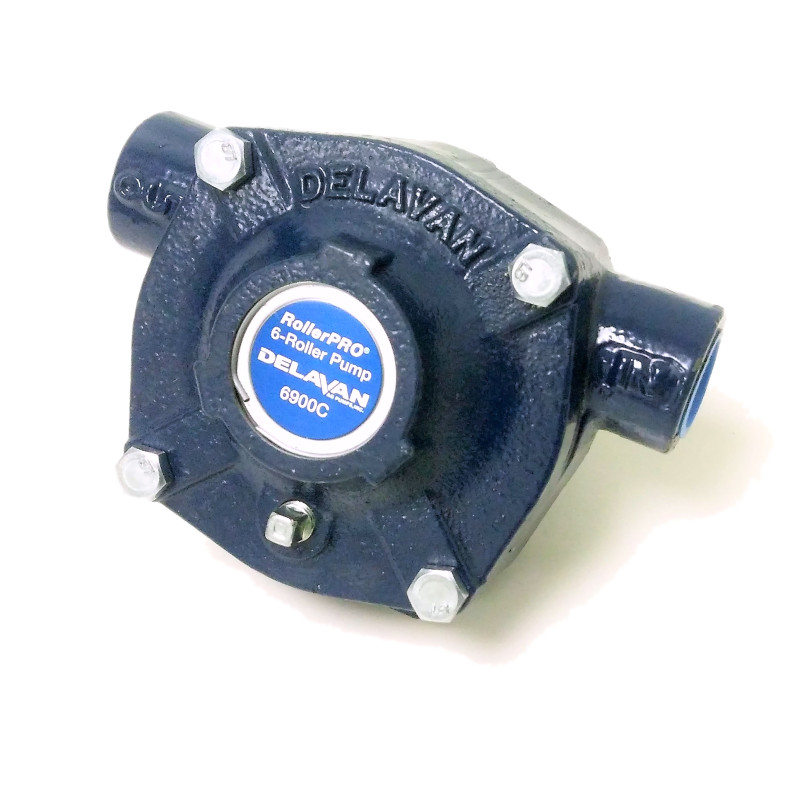

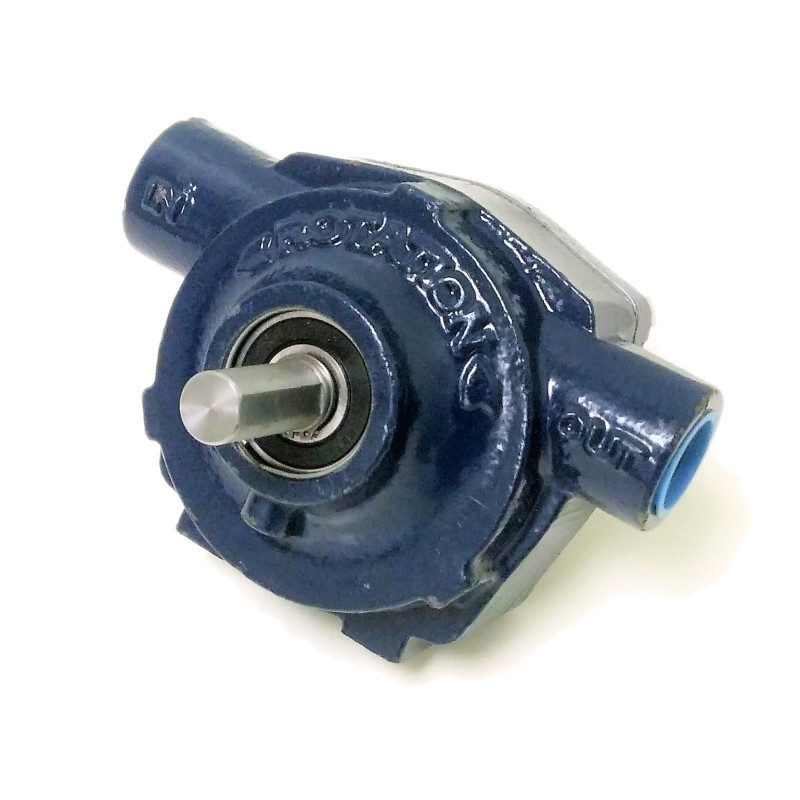

Type: 6-Roller design
Max Flow: 22.8 GPM
Max Pressure: 200 PSIG (20 bar)
Max Recommended Temperature: 140°F (60° C)
Port Size: 3/4 ” NPT
Shaft Diameter: 5/8 "
Shaft Rotation: CCW (standard)

(Shaft rotation is determined when looking at shaft end of pump)

Materials of Construction

Housing: Cast Iron

Rollers Diameter: 11/16 "
Shaft Seals: Viton cartridge type lip seals
Seal Ring: Viton
Shaft & Rotor: 410 stainless steel shaft/over molded rotor
Bearings: Permanently-lubricated, heavy-duty sealed bearings

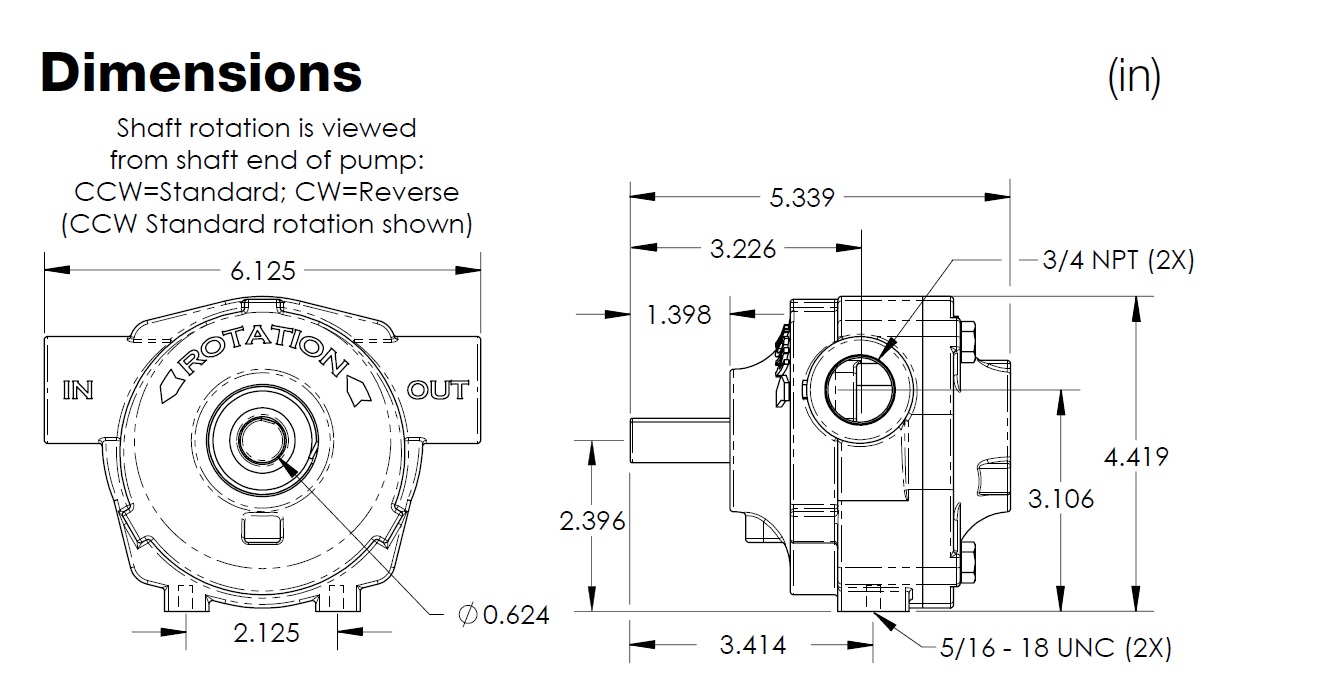

Dimensions

Dimensions: 6.125 x 5.339 x 4.419 in

Weight: 9 lbs

Flow / Pressure Chart
