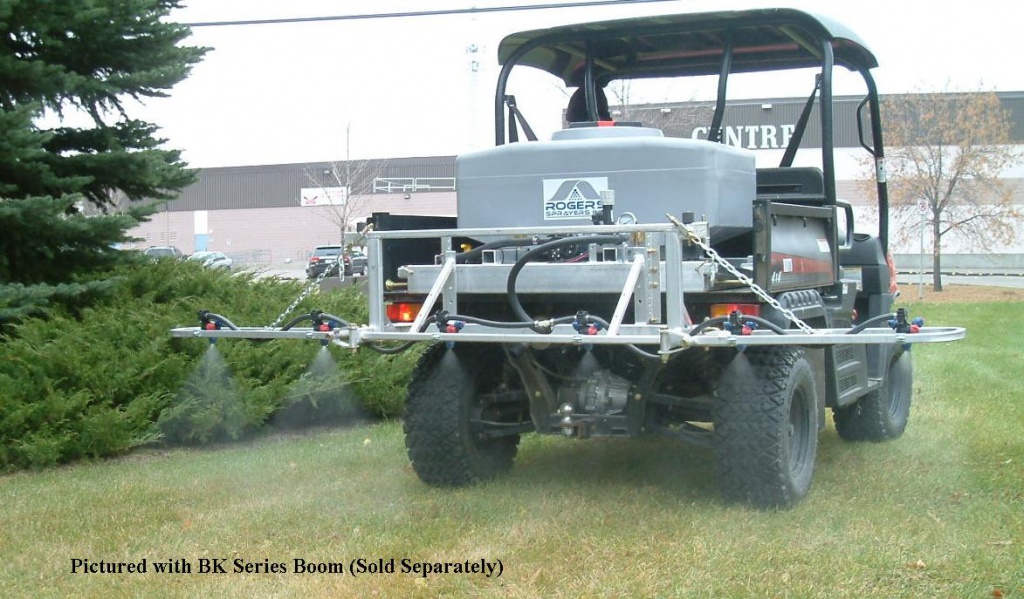

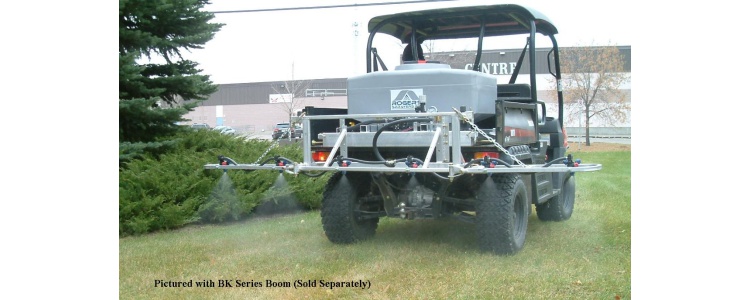

Pictured with BK Series Boom

The skid frame comes standard with a 50 US gal tank that mounts securely into the back of most utility vehiclesBuilt entirely out of aluminum, the unit is impressively light making it extremely easy to move around. This unit is simple to operate and maintain. When not in use, the SMA50E stands alone…..on it’s own legs.  (legs fold up nicely along frame when mounted in a vehicle)

Note that SMA50E/100E are not complete sprayers. They need to be attached to other Booms. See the BK Series Boom, available in 10' (3m) or 12' (3.6m), and wind deflector kits for a complete sprayer package.



Specifications:

· Lightweight aluminum frame

· Storage legs

· Tank locks

· 50 US gal (190l) tank

· Large 12” (30cm) lid for easy filling

· Manual pressure regulator

· Liquid filled pressure gauge (0-100psi)

· High capacity 12v electric pump

· In-line strainer

· Wiring harness with in cab control

· Shutoff valves for draining

· Adjustable sprayer height


 Optional Accessories:

14121   HoseReel Kit

The Hose Reel Kit is a very handy device that allows the operator to spot spray directly from their SMA series sprayer. Includes spray gun, manual hose reel, 50’ hose, and necessary fittings to tap into existing plumbing.

Latest Model Manual(s)
Latest Manual













Skid Mount Al., 50USG Elec

  • USD $2,415.00
