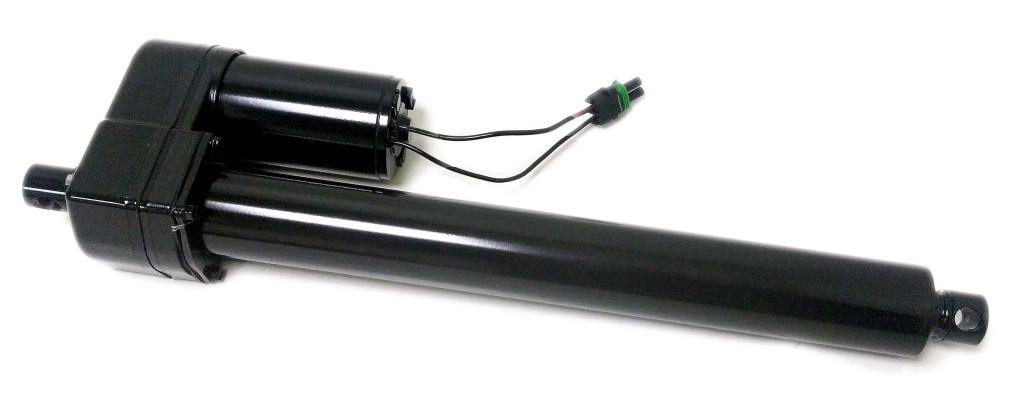

• Actuator 12, Thomson, Danaher Motion, D12-10B5-12 M3
  • Actuator 12, Thomson, Danaher Motion, D12-10B5-12 M3
Description

Type : Thomson/Danaher Motion Actuator 12

Leads : Weatherpack Tower Connectors

Features :

  • Stainless steel extension tube
  • Overload clutch for mid and end of stroke protection
  • Motor with thermal switch
  • Maintenance free

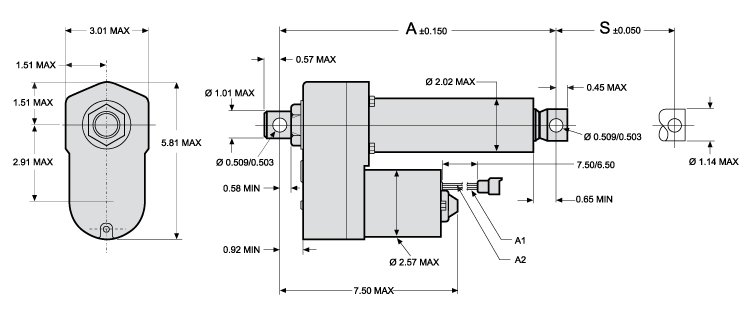

Dimensions and Specifications



Property

Value

[A]

19.9 in

[S]

12 in

Feedback

No Feedback

Gear Reduction

10:1

Limit Switches

Not Available

Load, Dynamic

1000 lbf

Load, Max Static

3000 lbf

Travel Rate @ Full Load

0.8 in/s

Travel Rate @ No Load

1.3 in/s

Voltage

12 Vdc

Weight

12.7 lbs

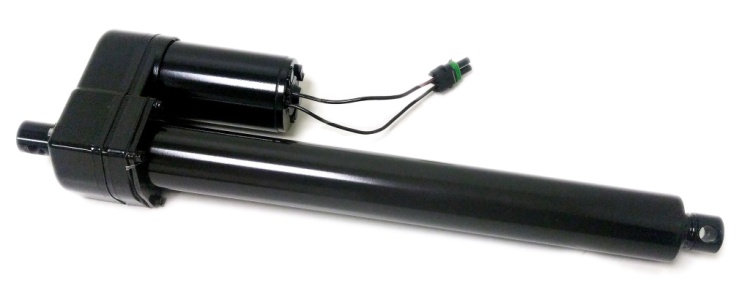

Actuator 12, Thomson, Danaher Motion, D12-10B5-12 M3

  • Brand: Thomson
  • Product Code: 14536
  • Availability: In Stock
  • USD $635.22
