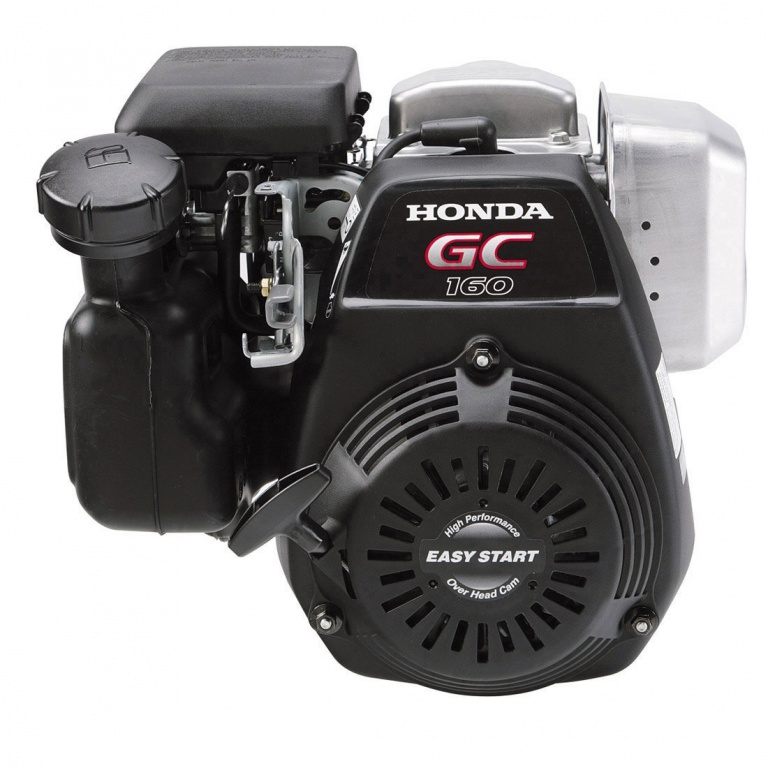

• Engine Honda GC160
  • Engine Honda GC160
The following information is collected from manufacturer's official website. We do our best to keep it up-to-date

Specification

Engine Type:  Air-cooled 4-stroke OHC
Bore x Stroke: 2.5" x 2.0" (64 mm x 50 mm)
Displacement: 9.8 cu in (160 cm3)
Net Power Output: 4.6 HP (3.4 kW) @ 3600 rpm
Net Torque: 6.9 lb-ft (9.4 Nm) @ 2500 rpm
PTO Shaft Rotation: Counterclockwise (from PTO shaft side)
Compression Ratio: 8.5:1
Carburetor: Horizontal type butterfly valve
Ignition System: Transistorized magneto
Starting System: Recoil/electric
Air Cleaner: Dry (paper filter)
Governor System: Centrifugal Mechanical
Fuel Tank Capacity: 1.9 U.S. qts (1.8 liters)
Fuel: Unleaded 86 octane or higher
Oil Capacity: 0.61 US qt (0.58l)
Lubrication System: Splash
Dry Weight: 25.4 lbs (11.5 kg)

Dimensions

Length (min) 13.3" (337mm)
Width (min) 14.5" (369mm)
Height (min) 13.0" (331mm)
PTO Shaft Options
Q type Straight shaft
V type Tapered shaft
P type Threaded type (SAE)

Write a review

Note: HTML is not translated!
    Bad           Good

Engine Honda GC160

  • Brand: Honda
  • Product Code: 15468
  • MPN: GC160
  • Availability: In Stock
  • USD $423.50 Deals of the week
  • USD $380.00
